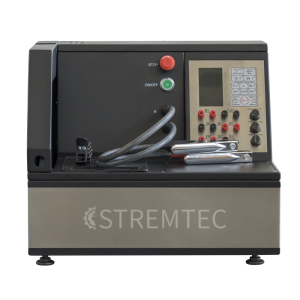

TSH-004 Starter , Alternator & Regulator Tester
Application:
- the evaluation of the technical condition of 12/24V automotive alternators at the loads 100A and 50A respectively
- the diagnostics of performance capacity of voltage regulators separately from alternators
- the evaluation of the technical condition of 12/24V starters with the power up to 4kW at idle.
Features:
- compact dimensions, suitable for desk top, power supply from single-phase 230V network;
- convenient mounting of a unit and its drive – without extra tools;
- smooth adjustment of alternator rpm and load current;
- diagnostics of alternators that don’t have the integrated voltage regulators;
- electronic self-protection prevents the bench electronic components from damages if the unit’s connected wrong.
Application:
In workshops (manufactories) for the repair of starters and alternators to determine the technical condition of the unit before and after maintenance;
On the service stations (car services) to determine the technical condition of dismantled units to decide on the possibility or impossibility of further exploitation of the units
In organizations that trade spare parts of cars for pre-sale inspection of units to reduce warranties
In educational institutions for training technologies of repair of starters and alternators.
- Dimensions (L×W×H), mm 570×505×450
- Weight, kg 70
- Supply voltage, V 230 (60Hz) or 120 (50Hz)
- Supply type Single-phase
- Drive power, kW 2.2
- Quantity of storage batteries (not included into supply slip)
- 2 similar lead-acid by 12V
- Battery capacity Capacity from 45 up to 60 A-h and dimensions (L x W x H) not exceeding 207×175×175 mm
- Storage battery automatic charging No.1 Available
- Storage battery automatic charging No.2 Not available
- Rated voltage of the diagnosed units, V 12, 24
- Alternator diagnostics Load, A
- 12V @ 0 – 100
- 24V @ 0 – 50
- Load adjustment (0-100%) Smoothly
- Drive speed, rpm 0-3000
- Drive speed adjustment Smoothly
- Drive type (drive/alternator) Belt
- Belt types- V-belt / - poly V-belt
Types of diagnosed alternators
COM (LIN, BSS), P-D, RLO, C, SIG, F/67
Measured parameters
- Stabilizing voltage;
- Alternating current;
- Continuous current;
- Drive speed;
For COM voltage regulators:
- Protocol;
- Exchange speed;
- ID;
- Type;
- Errors.
Voltage regulator diagnostics
Types of diagnosed voltage regulators
COM (LIN, BSS), P-D, RLO, C, SIG
Parameters of voltage regulator to be checked
- Stabilizing voltage;
- Control of the performance capacity of storage battery indicator lamp circuit (D+)
For COM voltage regulators:
- Protocol;
- Exchange speed;
- ID;
- Type;
- Errors.
Short circuit protection: Available
Short circuit alarm: Available
Starter diagnostics
Power of diagnosed starters, kW up to 4
Measured parameters
- Voltage;
- Alternating current;
- Continuous current.
